NVC-HDSPT9530PD-300HLNVC-HDSPT9530PD-300HL

NVC-HDSPT9530PD-300HL

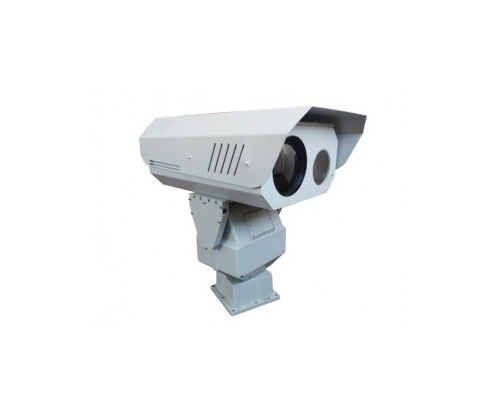

Thermal PTZ Camera

● 2.1MP30X Optical Zoom Ultra Low Illumination HD Visible Camera
● 640*512(336×256)Un-cooled Vanadium Oxide Infrared Detector
● Ultra Large Relative Aperture and Ultra High Sensitivity Performance Infrared OpticalLens
● High Precision Infrared Full Screen Thermometric, Excess-temperature Alarm, Temperature Analysis and Temperature Report
● The Visible Camera support Defog, 4A Control, Day&Night ICR, 3D DNR, etc
● Appropriative Outdoor Shield and High Precision Heavy PTZ
● Full compatible with a variety of Network Communication Protocols.


SPECIFICATION

Model

Type

COIRDouble Windows PTZ Thermal Imaging Camera

Model

 NVC-HDSPT9530PD-300HL

Infrared Detector

Effective Resolution

640*512/336*256

Detector Type

Un-cooled Vanadium Oxide Focal Plane Array

Pixel Pitch

17μm

Spectral Range

7.5 ~ 13.5μm

Input Voltage

4.4V ~6V DC

Power Consumption

< 1.2 W

Thermal Sensitivity(NETD)

< 50mK @25℃, F#1.0

Frame Rate

25 FPS (30 FPS)

Temperature Isotherm

Support

Start Time

< 3.5/S

FFC Duration

< 0.5/S

Signal Interface

Support Independent I/O Interface, RS232

Infrared Lens

Focal Length

15mm ~ 300mm

Zoom Mode

> 4X Electric Continuous Optical Zoom

F#

1.5

Angle of View

40°×32° ~ 2×1.6°

Human Body 1.8m×0.5m

Detection

11150m

Recognition

2800m

Objects 2.3m×2.3m

Detection

27000m

Recognition

6760m

Infrared Image

Video Standard

NTSC/PAL

Digital Video

H.264 BP/MP/HP,H.265 Main Profile,MJPEG

Digital Zoom

×2, ×4, ×8

Image Enhancement

Auto Gain Control, Digital Data Enhancement

Brightness

Auto/Manual

Image Control

Continuous Digital Zoom, Dynamic Zoom, Rotation Zoom, Image Optimization

Polar Pseudo-color

14 kinds of Pseudo-color can be adjusted

Encoding-board Store Preset

1280

Electronic Compass

The Current Direction and Angle of the Prototype Lens can be superimposed on the Monitoring Screen

Privacy Mask

OFF/ON

OSD

Multiregion OSD: Support Time and Date, Scene Name and Custom OSD (8 Lines, Multiple Characters Per Line)

Image Correction

Auto/Manual

TemperatureMeasurement

Thermometric Range

High Gain: -40℃~150℃; Low Gain: -40℃~550℃

Thermometric Precision

±1.5℃

Thermometric Correction

Auto/Manual

Thermometric Mode

Full Frame Frequency Temperature Record, Highest&Lowest Temperature Catch, Excess-temperature&Low Temperature Alarm, Abnormal Heating-up, etc differential Temperature Alarm(Color, Voice)

Thermal Imaging Video Image Support Point, Line and Region Thermometric Rules, a Maximum of 12 Points, 12 Regions and 1 Lines can be set to support the Temperature Field Curve Recording

It Support Historical Temperature Query Function. And it can query the History Temperature Records of any Point, Line and Region in the Thermal Imaging Picture by the Client Software, and display it in a Sudden Form

It Support Thermal Imaging Video Regional Intrusion Detection, Cross Boundary Detection, Entry Area Detection, Out of Area Detection, etc

Radiance Correction

0.01 ~1.0 Radiant Rate can be adjusted, or adjusted by Predefined Material Radiant Rate Table

Background Temperature Correction

Auto

Atmospheric Transmittance Correction

According to the Input Ambient Temperature, Distance, Relative Humidity

Temperature Anomaly Alarm

OFF/ON

Video Coding

Video Coding

with High Stability, > 7*24 hours to run stably

1CH CVBS Video Input Interface

with Ethernet Interface, Support TCP/IP/ SIP/RTSP/RTP/RTCP, etc Network Protocols

2CH RS485/1CH RS422 Interface

≥1CH Audio Input/Output Interface

Video&Audio Code

Support H.264/H.265/MPEG-4 Codec Protocols

Support H.264 Main Stream/Substream Coding Format and Video Stream Parameters to be set separately

Support Multiple Resolutions: 336*256, 640*512, 720*576, 1280*1024

Support G.711u Audio Codec Algorithm, Mute Functions

Support Video Coding Parameters adjustable; Support Resolutions/Code Stream/Frame Rate, Frame TypeParameters Adjustable; Support Video Brightness, Contrast, Chroma, SaturationParametersAdjustable

PTZ Operation

Each channels of All Video Channels Support OSD

Support Real-time Flow Transmission Mode, UDP/TCP Optional

Support PTZ Control, PTZ Control Right Management, PTZ Preset Management, PTZ Locking

Support Pelco-P, Pelco-D, and other PTZ Protocols

Device Management

Support Planning Management of Local Upgrade, Remote Upgrade, Batch Upgrade and Support Upgrade

Support Centralized Management of the Service and Configuration of the Front-end Device by Center Server

Intelligent Business

Face Detection

Inspecting Personnels and Statistics of number of personnel under a certain Focal Length

PersonIdentification

Identification and Display of Personnel Information

Object Identification

Identifying and Displaying Objects Information

Smoke Detection

The Appearance of Smoke in the Monitor Screen can be detected

Motion Detection

The Moving Objects and Moving Direction and Speed in the Monitor Screen can be detected

Temperature DataAnalysis

Real-time Temperature Analysis, Historical Temperature Statistical Analysis, Temperature Warning

Scene State Analysis

According to the Preset Rules todetermine the Scene is normal or not

Intelligent Management System

Management and Scheduling of Customer's Manpower, Material Resources and Time through Large Data Statistical Analysis and Mathematical Model Calculation

Electronic Map

Support Vector Electronic Map Display

Auto Cruise

Support 24 Cruise Lines, Cruise by Time

Detect Volume Weight

Calculate the Volume and Weight of Pipelines and Tanks, etc in Given Distance, Azimuth.

Visible Camera

Image Sensor

1/1.9’’2.38MP Sony Progressive Scan CMOS

Max. Resolution

Full HD/1080P(1920x1080)

Focus Length

6~180mm

Aperture

F1.5~F4.3

Optical Zoom

30X Optical Zoom

Min. Illumination

Color 0.002Lux (F1.2,AGC ON), B/W 0.0002Lux (F1.2,AGC ON)

Electronic Shutter Speed

1/6~1/8000s

WDR

120dB

Day & Night Switch

Auto Day& Night IR Cut Optical Filter

Video Compression

H.264 BP/MP/HP, H.265 Main Profile,MJPEG

Audio Compression

G.711 / AAC / MP2

TVL

>1000TVL

Mufti-streams

1080P + Full D1 + CVBS

Video Code Rate

32Kpbs~8Mpbs, Under All Resolutions, Output Multi-channels Video Streams and Bandwidth with Full Frame Rate at same time are adjusted; Support VBR/ CBR

Focus Mode

Auto Focus, Zoom Focus (Zoom Trigger AF), Manual Focus

Exposure Control

Auto, Manual, Priority(Shutter or Max AGC), Brightness, etc

Exposure Mode

Auto, Center Exposure, Global Average Exposure, Manual Designated Area

ExposureCompensation

5 Levels can be adjusted

White Balance

Auto, Scene (Incandescent/ Fluorescent Lamp, Daylight, Flash Light, etc), Manual

AGC

Auto, Threshold Control

BLC

OFF/ON

HLC

OFF/ON

Image Effects

Rotation, Mirror, Latitude-longitude Image Mode, Self-defined Image Mode

Noise Reduction

3D-MCTF Digital Noise Reduction

Day & Night

Auto(ICR) / Color / B/W

ICR CUT

Auto/ Timing/ Alarm Trigger

OSD

Multi-Zone, Support Date, Time, Scene Name, Self-defined OSD(5 lines)

Defog

OFF/ON

Dynamic ROI

Dynamic ROI Setting, Support to Set Fixed Area or Dynamic Tracking Separately

Intelligent
