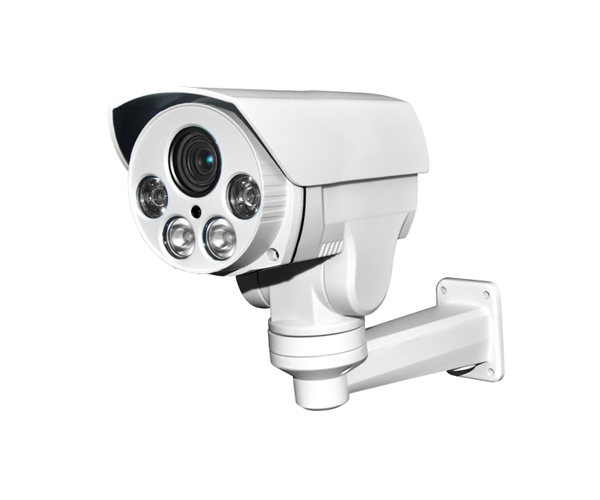

YC-HDM200IR

1080P IR Bullet IP PTZ Camera

◎ 1/2.9" Sony Exmor CMOS sensor
◎ Full HD resolution 1920 x 1080P
◎ Ultra low illumination 0.01Lux
◎ 10x optical zoom, PTZ control
◎ Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR
◎ WDR, Smart IR, Motion Detection, Privacy Mask, Mirror
◎ Lightning protection 4000V
◎ Strong water-proof housing, IP66
◎ 4 pcs Array IR Leds, IR distance 60-80 meters
◎ 5.1 – 51 mm AF lens


SPECIFICATION

Model YC-DHM200IR
Camera
Image Sensor 1/2.9" Sony Exmor CMOS
Effective Pixels 1920(H)×1080 (V)
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination  0.01Lux@F1.6(AGC ON), 0Lux IR on
Day/Night  Auto/Color/(B/W)
WDR Digital WDR
White Balance  Auto
AGC/BLC/HLC Support
DNR 2D/3D DNR, multi-levels adjustable
OSD Menu Support
Other Motion, Privacy Mask, Mirror, Flip
Encode
Embedded Solution  Ambarella S2L55M
Video Standard H.264
Video Resolution  1080P@25/30fps
Video Bitrates 32Kbps - 16Mbps, VBR/CBR
Audio Standard G.711-u
IR Led
IR Led 4 pcs 850nm Array IR Leds
IR Distance 60-80 M
Lens
Focal length  5.1 -51 mm AF lens
Zoom 10x optical zoom
PTZ
Pan/Tilt Range Pan: 0° ~ 300°; Tilt: -5° ~ 60°
Preset Point 256
Manual Control Speed Pan: 0.5° ~12° /s; Tilt: 0.51° ~12° /s
Preset Tour 8 lines
Pattern Scan 4 lines
Power On Action None/Preset/Pan can/Cruise
Optional Function
POE, Audio, Alarm In/Out, SD card, etc.
Network Services
Web  IE , Chrome, etc.
Media  CMS, Android, IOS
ONVIF 2.0 compatible
General
Network Port 1-RJ45, 100Mbps, POE optional
Power Supply 12 VDC ± 10%
Power Consumption < 15 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH
